博世DSR32B輸出控制系統
瀏覽量:
1000

博世DSR32B輸出控制系統

零售價
0.0
市場價
0.0
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數

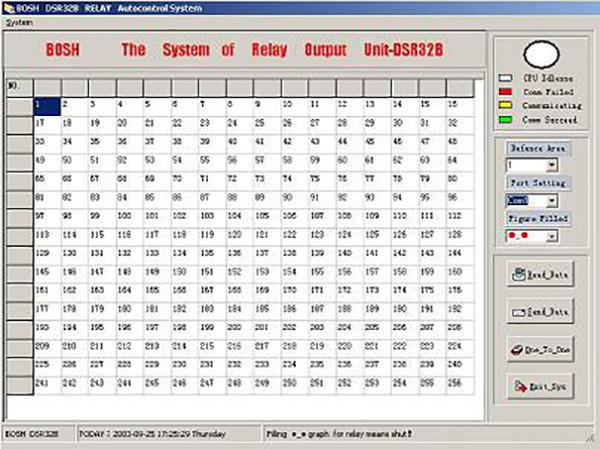

  博世DSR32B繼電器輸出單元控制程序是科安公司專門為博世報警系統DSR32B繼電器輸出單元進行出廠或用戶編程設置設計的一款中、英文版軟件。

  DSR32B is designed to work with DS7400 series, DS7240 control panel and CMS7000 alarm software. Each DSR32A has 32 relay output terminals. The relay output unit will output alarm signal in the form of one-to-multiple or multiple-to-one according to the corresponding setting once the DS7400 and DS7240 panel alarms. Eight DSR32B can be connected together to execute relay alarm output for up to 256 zones. The alarm open or short output of the relay can be controlled through setting the internal jumper. The output can be set through the software running on PC whose serial port 1 (COM1) connects RS232 port. Or you can read the default setting. DSR32B and CMS7000 are also connected to PC COM port for inter-communication.



博世DSR32B輸出控制系統
